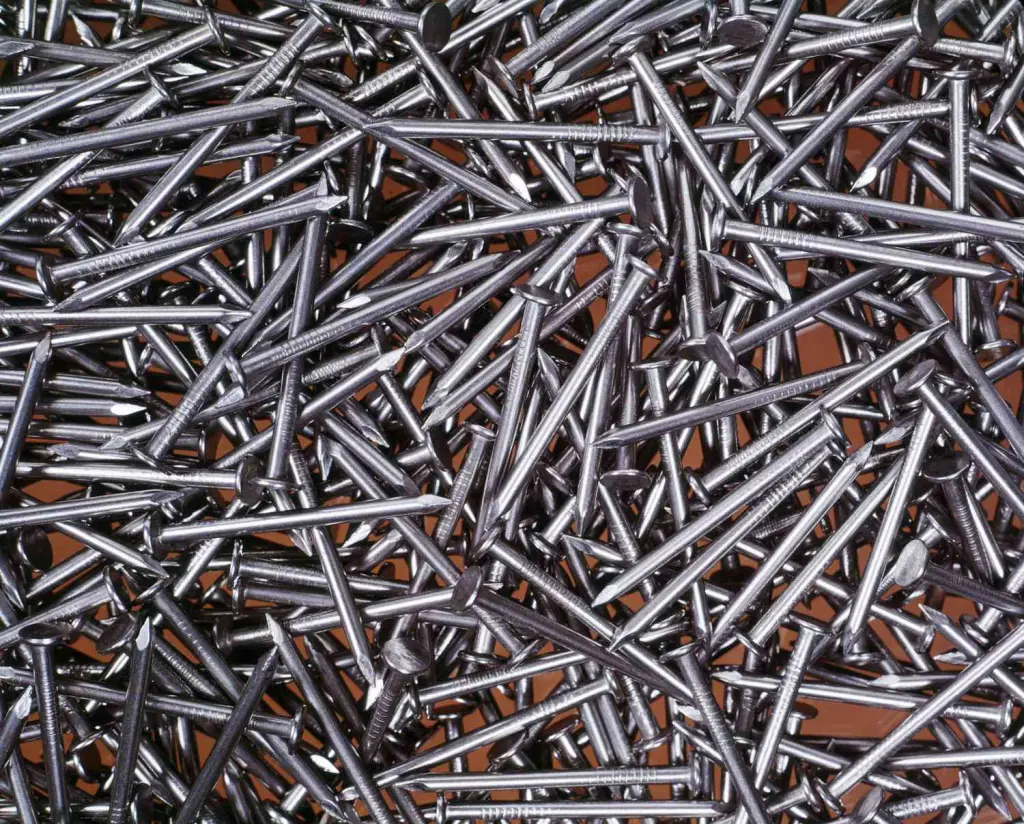

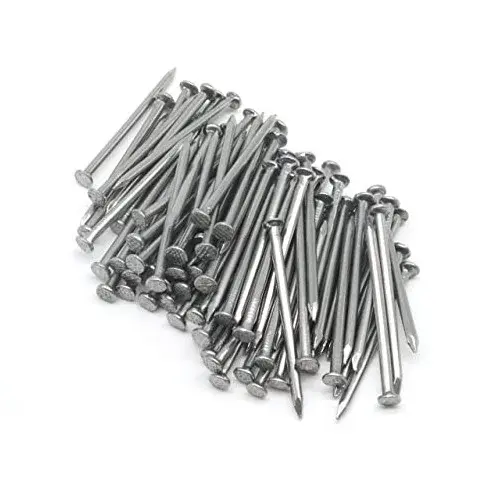

Common wire nails with a checkered countersunk head are a type of general-purpose nail used in various construction and woodworking projects.
Its have specific features designed for various construction and carpentry applications. Here are the typical specifications for these nails:
1. Material
- Carbon Steel: The primary material for these nails, providing strength and durability.
- Stainless Steel: Sometimes used for added corrosion resistance, especially in outdoor or marine environments.
- Galvanized: Coated with zinc to prevent rust and corrosion. There are two types:
- Electro-Galvanized: A thinner zinc coating applied electrically.
- Hot-Dip Galvanized: A thicker zinc coating applied by dipping the nail in molten zinc.
2. Head Type
- Checkered Pattern: The head has a crisscross pattern that improves grip with the hammer.
- Countersunk Design: The head tapers down so it can be driven flush with or below the surface of the material. This allows for a smoother finish when the surface is sanded or painted.
3. Sizes and Dimensions
Nails are measured by their length and diameter, which are often denoted in inches and gauge or penny size (d).
Typical Dimensions:
- 1 Inch Length (15 Gauge):
- Head Diameter: ~0.22 inches
- Approx. Number per Pound: 501
- 1.5 Inch Length (13 Gauge):
- Head Diameter: ~0.28 inches
- Approx. Number per Pound: 298
- 2 Inch Length (11.5 Gauge):
- Head Diameter: ~0.32 inches
- Approx. Number per Pound: 189
- 2.5 Inch Length (11.5 Gauge):
- Head Diameter: ~0.32 inches
- Approx. Number per Pound: 143
- 3 Inch Length (10.25 Gauge):
- Head Diameter: ~0.35 inches
- Approx. Number per Pound: 97
- 3.5 Inch Length (9 Gauge):
- Head Diameter: ~0.38 inches
- Approx. Number per Pound: 65
- 4 Inch Length (8 Gauge):
- Head Diameter: ~0.42 inches
- Approx. Number per Pound: 49
- 5 Inch Length (6 Gauge):
- Head Diameter: ~0.51 inches
- Approx. Number per Pound: 29
- 6 Inch Length (5 Gauge):
- Head Diameter: ~0.55 inches
- Approx. Number per Pound: 18
4. Shank Type
- Smooth Shank: Easier to drive but may not hold as well in soft or fibrous materials.
- Ring Shank: Provides better holding power by creating a locking effect in the material.
5. Finish
- Bright Finish: No additional coating, suitable for indoor applications where corrosion is not a concern.
- Electro-Galvanized Finish: Thin zinc coating, ideal for light-duty outdoor use.
- Hot-Dip Galvanized Finish: Thick zinc coating, best for heavy-duty outdoor use and high-moisture environments.
- Vinyl-Coated: Provides a smoother drive and additional holding power.
6. Point Type
- Diamond Point: A sharp, tapered point that facilitates easy driving into the material with minimal splitting.
7. Applications
- Framing: Commonly used in constructing the skeleton of a building.
- Sheathing: Attaching plywood or other sheathing materials to studs or framing.
- Subflooring: Securing subfloor panels to floor joists.
- Decking: Attaching decking boards to the frame.
- Finish Carpentry: When a flush, smooth surface is desired, especially for visible surfaces that will be painted or stained.
8. Standards
- ASTM Standards: Many nails conform to ASTM standards for material, dimensions, and coatings to ensure quality and consistency.
9. Packaging
- Typically sold in boxes or buckets, with quantities depending on the size of the nails. Smaller nails may come in higher quantities per pound compared to larger nails.
Understanding these detailed specifications can help in selecting the appropriate wire nails for specific construction needs, ensuring optimal performance and durability.
